Installation¶
To install your Beacon to your 3D printer, you will need a mount.
Existing Mounts¶
For mounts created by the community, please see the following links:
Annex Engineering¶
VzBot¶
Vz Printhead Printed Official
Vz Printhead CNC Official
Voron Design¶
V2.4/Trident Unofficial by Annex Engineering
Creating a Mount¶
In order to create a custom mount for your Beacon, the following dimensions and CAD files are required.
CAD files are located here.

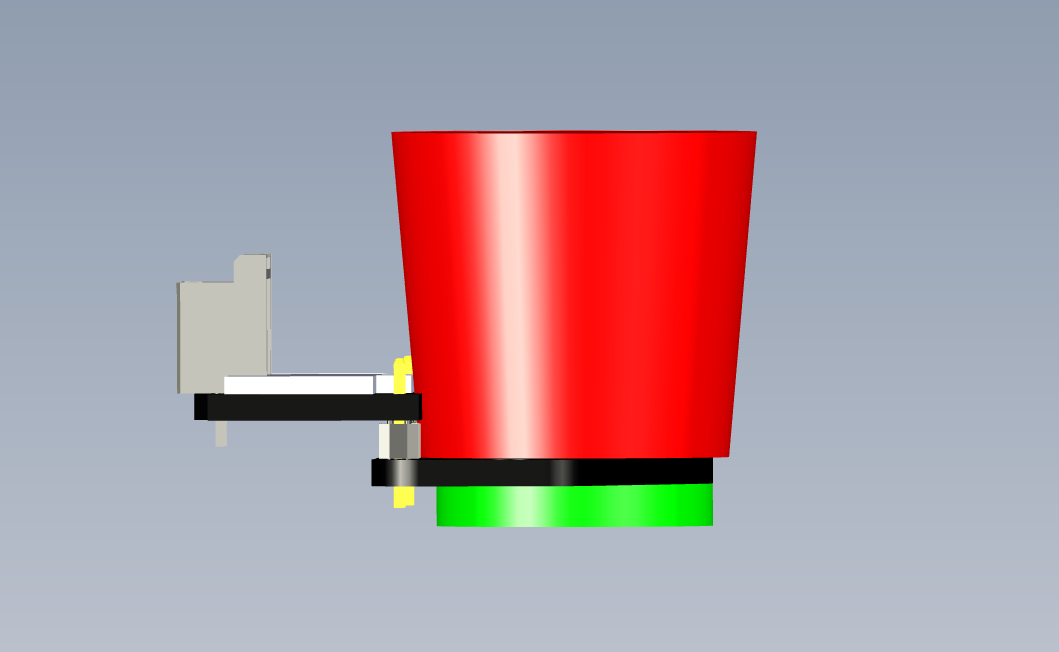

The model includes some extra features to help with integration such as a bed spacing disc and a keepout cone:

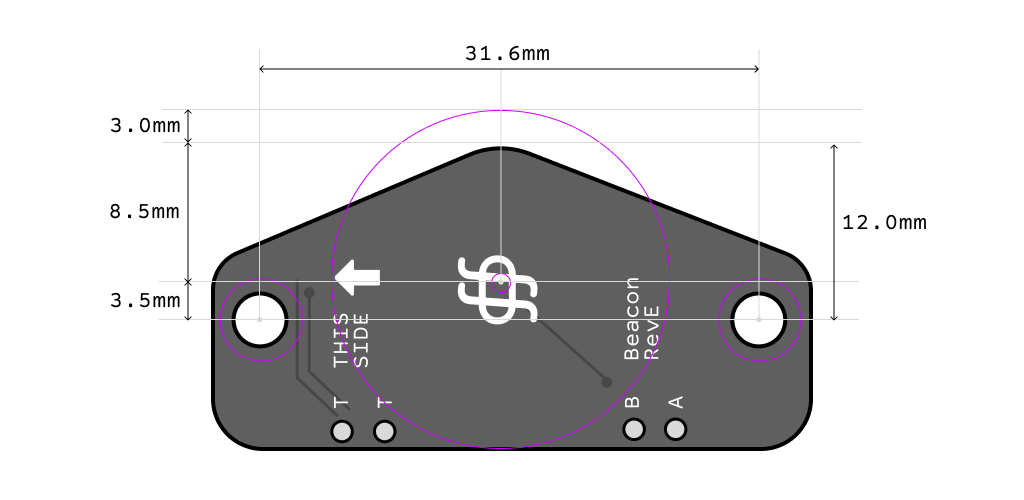

It is important to understand the dimensions of the Beacon:

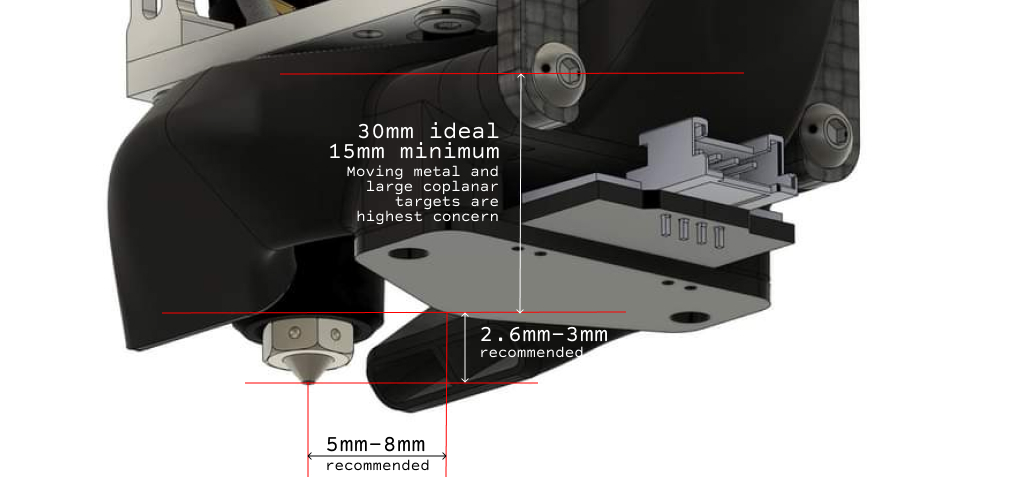

As well as the keepout areas when designing your mount:
